What Are Common Mode Chokes and Why Are They Essential in Electronics?




Introduction to Common Mode Chokes

In the world of electronics and power systems, noise suppression and signal integrity are critical for ensuring optimal performance. One of the most effective components used for this purpose is the Common Mode Choke (CMC). Found in countless applications ranging from laptops and industrial controllers to automotive electronics and power supplies, these passive components play a vital role in suppressing unwanted electromagnetic interference (EMI) and radio frequency interference (RFI).

A common-mode choke is essentially an inductor with two or more windings wound on a single magnetic core. It functions by blocking common-mode currents—those that flow in the same direction in multiple conductors—while allowing differential currents to pass through with minimal impedance.

How Does a Common Mode Choke Work?

A common-mode choke works on the principle of electromagnetic induction. When differential current (the desired current) flows through the conductors, the magnetic fields generated by each winding cancel each other out, resulting in low impedance and minimal loss. However, when common mode noise is present—currents flowing in the same direction through both windings—the fields reinforce each other, generating a high inductance that effectively impedes and filters out the noise.

This dual behaviour makes CMCs particularly useful in power electronics, switching power supplies, and data lines, where both power efficiency and clean signal transmission are essential.

Key Features of Common Mode Chokes

  • High Impedance to Common Mode Currents
    Efficiently blocks noise without disturbing signal flow.

  • Low Impedance to Differential Mode Currents
    Ensures the desired signal passes through with little to no loss.

  • Compact and Cost-Effective
    Small form factor is ideal for compact electronic assemblies.

  • Broad Frequency Range
    Effective across a broad frequency spectrum, particularly for EMI suppression.

  • Various Core Materials
    Options include ferrite, powdered iron, and nanocrystalline cores to suit different frequency and power requirements.

Benefits of Using Common Mode Chokes

  • EMI and RFI Suppression
    Prevents unwanted noise from affecting nearby devices or being emitted into the surroundings.

  • Improved Signal Integrity
    Maintains clean communication and data transmission by minimising disturbances.

  • Enhanced Compliance with Regulatory Standards
    Helps electronic devices meet FCC, CISPR, and other EMC standards.

  • Reduced Crosstalk in Communication Lines
    Shields signal lines from mutual interference, especially in Ethernet and USB applications.

  • Increased Product Lifespan
    Reduces stress on other components by maintaining power quality and reducing transients.

Common Applications of Common Mode Chokes

  • Switch Mode Power Supplies (SMPS)
    Used to minimise EMI in both AC and DC input/output lines.

  • USB and Ethernet Lines
    Ensures stable communication and signal fidelity in digital interfaces.

  • Industrial Controllers and Sensors
    Maintains operational accuracy in harsh electromagnetic environments.

  • Automotive Electronics
    Suppresses noise in infotainment systems, ECU, and sensor arrays.

  • Solar Inverters and Smart Meters
    Protects sensitive components from high-frequency noise and enhances data accuracy.

Types of Common Mode Chokes

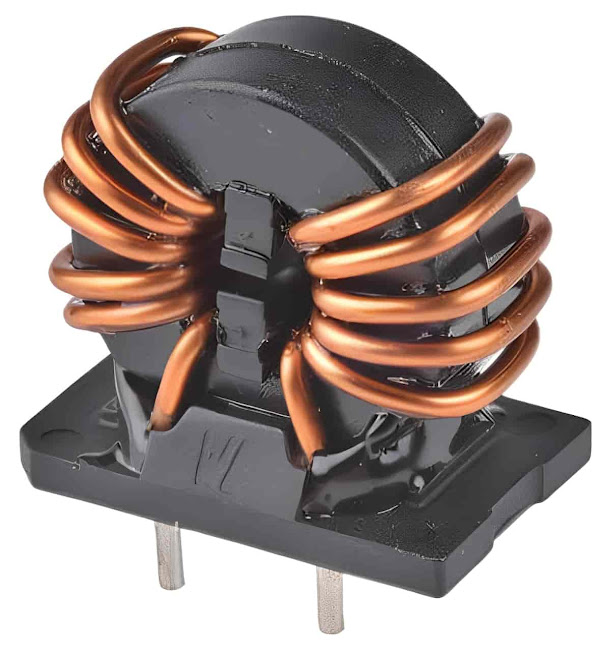

  • Toroidal Core Chokes
    These chokes use toroid-shaped magnetic cores, offering superior EMI suppression in compact formats.

  • Drum Core Chokes
    Ideal for high-current applications, typically used in power supply inputs.

  • Surface-Mount Common Mode Chokes
    Designed for PCB-level integration in compact devices like smartphones, laptops, and routers.

  • High-Current CMCs
    Made explicitly for industrial equipment and automotive systems, supporting high load currents with minimal thermal stress.

Selection Tips for Engineers

When selecting a common-mode choke for your project, consider the following:

  • Rated Current
    Must match or exceed the maximum expected current in the circuit.

  • Impedance Curve
    Choose a component with appropriate impedance over your target frequency range.

  • Insertion Loss
    Evaluate how much the choke affects your signal, especially in high-speed communication.

  • Package Type and Mounting
    Decide between through-hole and surface-mount packages based on your board layout.

  • Environmental Ratings
    For automotive and industrial use, check for AEC-Q200 compliance and thermal ratings.

Future Trends in Common Mode Choke Technology

With the rising demand for faster data transmission, miniaturised electronicsand the electrification of vehicles, common-mode chokes are evolving rapidly. Key advancements include:

  • Nanocrystalline and Amorphous Core Materials
    Offering superior permeability and thermal stability for high-performance applications.

  • Integrated CMC Modules
    Combining differential mode filtering and ESD protection in a single package.

  • Low-Profile Surface-Mount Designs
    Ideal for next-generation IoT devices, wearables, and ultra-compact power adapters.

As technology trends continue toward higher speeds and denser circuits, the need for effective noise suppression will only grow, making common-mode chokes a critical component in the engineer’s toolkit.

Conclusion

Common-mode chokes are unsung heroes in the electronic ecosystem. By filtering out common-mode noise while preserving desired signals, they enable modern electronics to perform reliably, comply with standards, and coexist peacefully in electrically noisy environments. Whether you're designing a compact IoT device, a robust industrial controller, or a high-speed communication interface, integrating the right standard mode choke can make all the difference in ensuring product quality and performance.
